PE Series Jaw Crusher

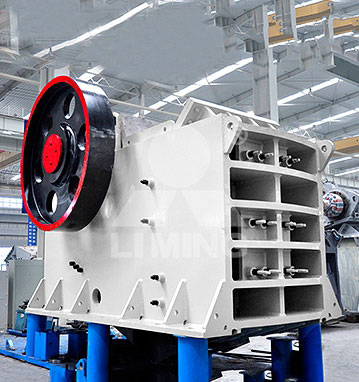

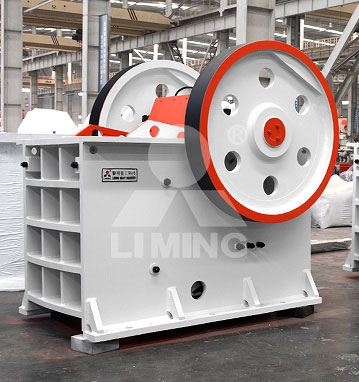

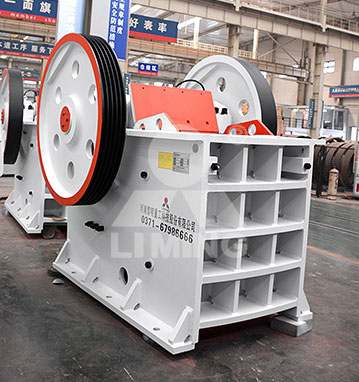

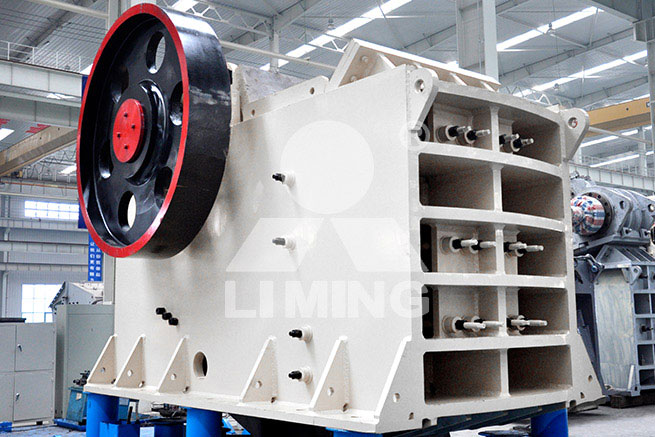

PE Series Jaw Crusher

INPUT SIZE: Up to 1000mm       PRODUCTION CAPACITY: 5-800T/h

Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy.This movement would trigger the toggle plate to push the movable jaw forwards an...

Features
  • 1. High crushing ratio, well-distributed final product size.
  • 2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it can meet various requirements of customers.
  • 3. Lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance.
  • 4. Simple structure, reliable performance, low maintenance cost.
  • 5. Little dust and low noise.
Overview
Jaw Crusher is ideally suitable as primary and secondary crusher for material with compression strength less than 320Mpa. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy.
Working Principle

The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards. This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.

Specifications
Model Feed opening (mm) Max. Feeding Size (mm) Adjustable Discharge opening (mm) Capacity (t/h) Motor Power (kW) Overall Dimensions (mm) Weight (t)
PE250×400 250X400 200 20-60 5-20 15(20) 1150×1275×1240 2.8
PE250x1000 250X1000 210 15-50 15-50 30(40) 2790x2670x1380 6.5
PE400×600 400X600 350 40-100 15-60 30(40) 1700×1732×1653 6.5
PE500×750 500X750 425 50-100 50-100 55(75) 2035×1921×2000 10.3
PE600×900 600X900 500 65-160 60-130 75(100) 2290×2206×2370 16
PE750×1060 750X1060 630 80-140 110-250 110(150) 2620×2302×3110 27
PE900×1200 900X1200 750 100-200 160-380 130(175) 3789×2826×3025 46.5
PE1000×1200 1000X1200 850 200-300 315-550 130(175) 3889×2826×3025 56
PE1200×1500 1200X1500 1000 150-350 400-800 200(270) 4930X3148X3560 88
