Features

1. Machine hoisting: It can be hoisted and transported as a whole, reducing the dismantling time and installation time.
2. Reduce civil works: The loading height of the coarse crushing truck is reduced, and the overall design of the loading bin is made to reduce the customer's investment in civil engineering and loading walls. On-site foundation-free or simple foundation installation.
3. Save area: Reduce the area occupied by the overall production line and save customer site investment.
4.Intelligent control: Integrated control of a single crushing station, optional centralized control of the production line, to achieve integrated control of the entire production line.
5. Convenient and flexible: The configuration of the production line can be adjusted at any time (increase or decrease, or even replace equipment) according to changes in on-site working conditions.
6. Various combinations: The multi-style method can realize the separation of the crushing unit and the screening unit, which is convenient to realize the overall sealing and meet the environmental protection requirements.

Overview

MK series crushing and screening station is a new type of integrated crushing and screening station continuously developed by our company in order to better meet the actual needs of customers. This equipment is a large-scale crushing product that is convenient for the installation and transition of the production line. It can realize the assembly of the production line on the flat ground without foundation or simple foundation. The crushing equipment and belt conveyor are integrated into one, and the floor space is smaller. It can meet customer demand for fast installation, low investment and medium and large production lines.

Working Principle

Specifications

Number	Series	Standard Model	Equipment	Equipment			Max. Production Capacity
Number	Series	Standard Model	Model	Model	Max. Feed Size(mm)	Capacity(t/h)	Max. Production Capacity
1	Primary Crushing Plant	MK75J	FK0936	PE750X1060	630	110-250	120-280
2		MK90J	FK1142	PE900X1200	750	150-300	150-320
3		MK110J	FK1142	C6X110	760	160-400	160-420
4		MK125J	FK1345	C6X125	850	240-600	240-600
5		MK1315C	FK1345	CI5X1315	700	200-300	230-330
6		MK1415C	FK1345	CI5X1415	900	300-500	300-500
7	Secondary Crushing and Screening Plant	MK160H	-	HST160S	300	A	A+(30~70)
8		MK300H	-	HPT300	220	A	A+(30~70)

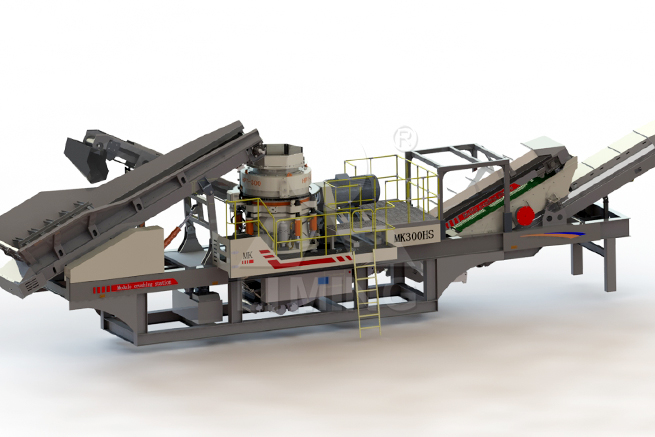

9		MK300HS	SKX1536	HPT300	220	A	A+(30~70)
10		MK500H	-	HPT500	300	A	A+(30~70)
11		MK250H	-	HST250S	350	200-450	200-450
12		MK1315I	-	PFW1315Ⅲ	300	150-280	180-300
13		MK1213I	-	CI5X1213	300	150-280	180-300
14		MK9532V	-	VSI5X9532	45	180-280	180-280
15		MK1145V	-	VSI5X1145	45	250-360	250-360
16		MK1040V	-	VSI6X1040	40	264-283	264-283
17		MK150S-3	-	3SKX1560	250	60-250	60-250
18		MK200S-2	-	2SKX1860	300	70-350	70-350
19		MK200S-3	-	3SKX1860	300	70-350	70-350
20		MK300S-3	-	3SKX2160	300	70-450	70-450
21		MK400S-3	-	3SKX2460	300	70-450	70-450
22		MK500S-3	-	3SKX2475	300	70-450	70-450
23	Two-seat Crushing and Screening Plant	MK160H-2M	3SKX1560	HST160H	180	A	A+(30~70)
24		MK300H-2M	3SKX1860	HPT300	220	A	A+(30~70)
25		MK250H-2M	3SKX2160	HST250H	215	A	A+(30~70)
26		MK1213I-2M	3SKX1860	CI5X1213M	300	150-250	150-250
27		MK1315I-2M	3SKX2160	CI5X1315	300	180-300	180-300
28		MK9532V-2M	3SKX2160	VSI5X9532	40	180-280	180-280
29		MK1040V-2M	3SKX2160	VSI6X1040	40	264-283	264-283
30		MK1145V-2M	3SKX2160	VSI5X1145	45	250-320	250-320
31		MK300H-2D	HPT300	HPT300	220	250-450	250-450
32		MK1315I-2D	CI5X1315	CI5X1315	300	250-450	250-450
33	Combination Crushing and Screening Plant	MKT70-4	FK0936	PE500X750	450	40-60	50-70
33		MKT70-4	3SKX1545	PYB900	450	40-60	50-70
34		MKT100-4	FK0936	PE600×900	500	35-110	70-120
34		MKT100-4	3SKX1560	HST100H1	500	35-110	70-120
35		MKT150-4	FK0936	PE600×900	500	65-160	130-170
35		MKT150-4	3SKX1560	HST160H1	500	65-160	130-170
36		MKT150-3	FK1142	CI5X1213M	550	100-170	120-190
36		MKT150-3	FK1142	3SKX1560	550	100-170	120-190

Any change of the technical data shall not be advised additionally.
