Rotary Dryer

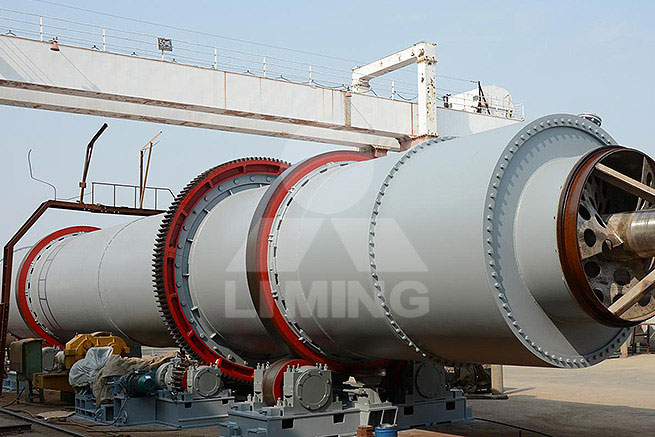

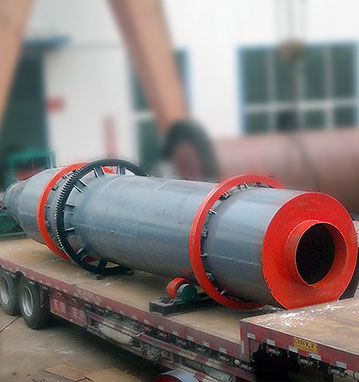

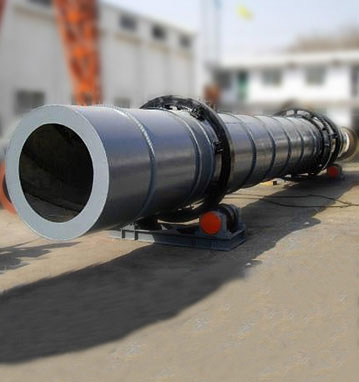

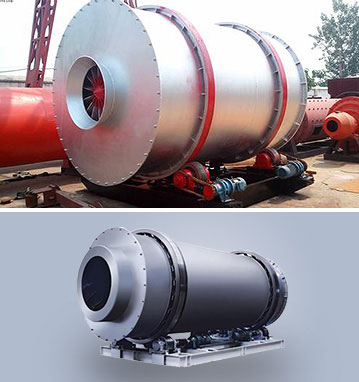

Rotary Dryer

INPUT SIZE: 600-2800mm       PRODUCTION CAPACITY: 2.26-147.8m³

Rotary Dryer is used to dry materials like limestone, slag, clay, etc. It adopts X-type and H-type multi-segment material lifting plate.Material is fed at one end and discharged at the other end. In direct-type rotary dryers, hot gases move through the cylinder in direct contact with the material, either with or against the direction of its flow. ...

Features
    • 1.It adopts X-type and H-type multi-segment material lifting plate.
    • 2.New type fluidized bed combustion boiler is suitable for various kinds of coal.
    • 3.Great improvement has been made on driven system of the dryer.
    • 4.teeth-changeable gear is used, by this maintenance is easier.
    • 5.The adoption of centralized control system enables automatic operation.
Overview
Rotary Dryer is used to dry materials like limestone, slag, clay, etc. It can be used in building materials, metallurgy, chemical industry and cement industry. The dryer is mainly made up of rotary barrel, material lifting plate, transmission device, support device, seat ring, etc. The dryer has advantage of scientific structure, good craftsmanship, high capacity, low consumption and easy maintenance.
Working Principle

Rotary dryer consist of a horizontally inclined rotating cylinder. Material is fed at one end and discharged at the other end. In direct-type rotary dryers, hot gases move through the cylinder in direct contact with the material, either with or against the direction of its flow. The cylinder is equipped with flights, which lift the material and shower it down through the hot gas stream.

Specifications
Model Diameter of Barrel(mm) Length of Barrel(m) Gradient(°) Rotary speed(RPM) Power(Kw) Volume(m³)
Φ0.6×8-12 600 8-12 3-5 8 4 2.26
Φ0.8×10-12 800 10-12 3-5 7.2 4 5.02
Φ1.0×10-12 1000 10-12 3-5 6.73 5.5 7.85
Φ1.2×12-18 1200 12-18 3-5 5.8 11-15 13.31
Φ1.5×12-18 1500 12-18 3-5 4.8 15-22 21.2
Φ1.8×12-18 1800 12-18 3-5 3.2 18.5-30 48.22
Φ2.2×12-22 2200 12-22 3-5 3 22-30 70.43
Φ2.8×15-24 2800 15-24 3-5 2.59 30-55 147.8

Notice: Any change of European Type Jaw Crusher technical data shall not be advised additionally.
