LSX Series Sand Washing Machine

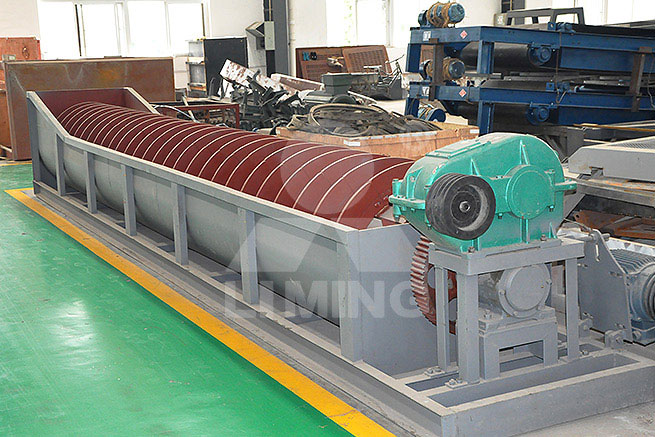

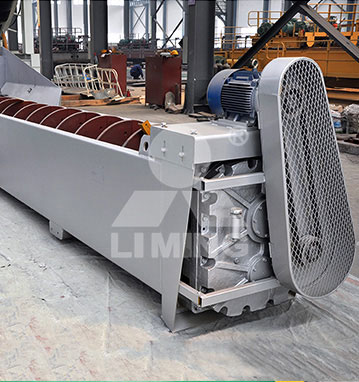

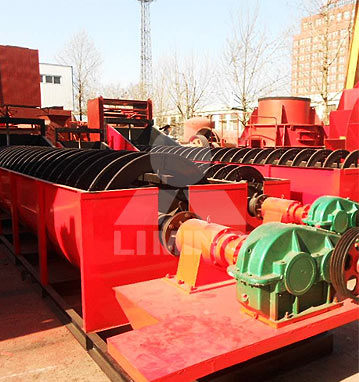

LSX Sand Washing Machine

INPUT SIZE: Up to 10mm       PRODUCTION CAPACITY: 100-350T/h

Screw sand washing machine has three functions, washing, dewatering and classifying included. Screw sand washing machine is a machine which uses the buoyancy of water to separate dust and impurities from sand....

Features
    • 1.High cleaning ability.
    • 2.Reasonable structure.
    • 3.Large capacity.
    • 4.Low consumption.
Overview
Screw sand washing machine has three functions, washing, dewatering and classifying included. The plant adopts new design with inclination of 15°, which makes efficiency higher and operation easier. The screw sand washing machine is widely used in mining machinery, construction, concrete dam and other fields.
Working Principle

Screw sand washing machine is a machine which uses the buoyancy of water to separate dust and impurities from sand. With the agitation of the screw slice, the impurities will be washing off. Meanwhile, the fine sand and the coarse sand will be mixed uniformly while it is lifted up.

Screw sand washing machine is designed according to the characteristics that materials with different particle size and density have different settling velocity in the fluid. The particle with fine size and less density has a lower settling speed. Conversely, the particle with coarse size has a higher settling speed. With the agitation of the screw slice, you can get the purpose of separating dust and impurities from sand.

Specifications
Model Diameter of screw (mm) Length of tub (mm) Feed Size (mm) Capacity (t/h) Speed of screw (r/min) Electric Motor Power(kW) Water Consumption(t/h) Dimension (mm)(L×B×H) Weight (t)
XL915 915 7585 ≤ 10 100 21 11 10-80 8500*2810*3600 6.27

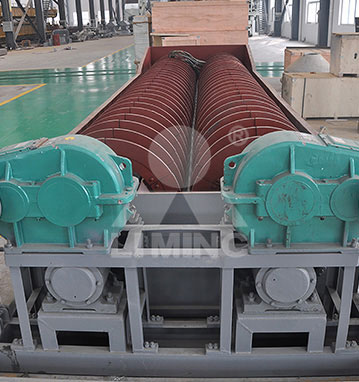

2XL915 915 7585 ≤ 10 200 21 2*11 20-160 8420*3765*3960 11.11
XL1115 1115 9782 ≤ 10 175 17 15 20-150 10970*3945*4720 10.18
2XL1115 1115 9782 ≤ 10 350 17 2*15 40-300 10970*5250*4720 17.94
