Raymond Mill

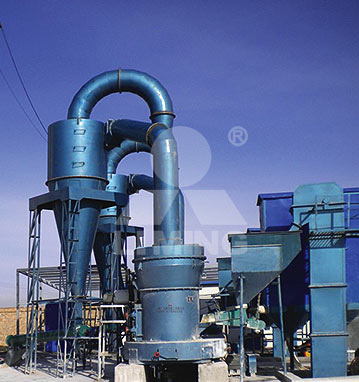

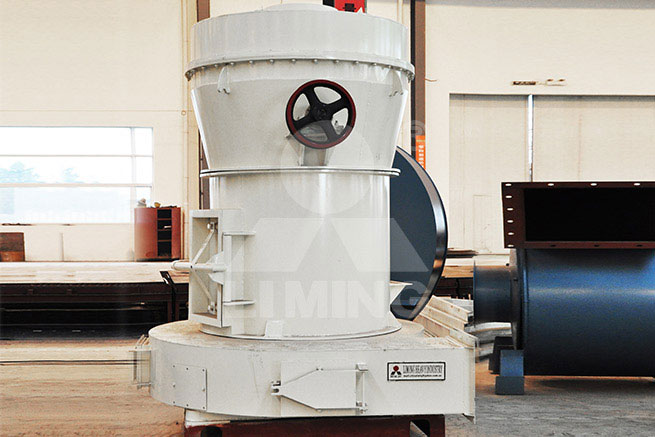

Raymond Mill

INPUT SIZE: Up to 30mm       PRODUCTION CAPACITY: 0.8-9.5T/h

Raymond Mill is mainly used for non-flammable and non-explosive materials with Mohs’ hardness less than 7 and humidity less than 6% such as barite, calcite, marble, ceramics and glass. 1.The whole plant is a vertical structure, so it occupies small area. From crushing of raw material to grinding and packing, it is an independent production system.Fine powde...

Features
    • 1.The whole plant is a vertical structure, so it occupies small area. From crushing of raw material to grinding and packing, it is an independent production system.
    • 2.Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
    • 3.Transmission device of main frame adopts airtight gearbox and pulley, which drives smoothly and operates reliably.
    • 4.The techniques is so subtly that ensures the durability of whole plant.
    • 5.The electric control system is centralized controlled, so the automaticity is high.
Overview
Raymond Mill is mainly used for non-flammable and non-explosive materials with Mohs’ hardness less than 7 and humidity less than 6% such as barite, calcite, marble, ceramics and glass. The final products’ s size ranges from 613μm to 44μm, which meets customers’ different requirements. Raymond Mill is widely used in metallurgy, construction, chemical, mining machinery, etc. industries.
Working Principle

Firstly, raw crusher is crushed by jaw crusher to the size satisfied, and then elevated into a hopper, from where the material is transported by the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for grinding. Materials are sent to the space between roller and ring by shovel for grinding. The milled powder is sent to separator by air.

Fine powders satisfied enters cyclone collector and discharged as final products. The air goes back to blower from upper part of cyclone collector. Coarse powders will be sent back for regrinding. The system is sealed and cycled under positive and negative pressure.

Specifications
Model 3R2115 3R2615 3R2715 3R3016 4R3216
Roller Number 3 3 3 3 4
Diameter (mm) 210 260 270 300 320
Height (mm) 150 150 150 160 160
Ring Inside diameter (mm) 630 780 830 880 970
Height (mm) 150 150 150 160 160
Maximum feed size (mm) 15 15-20 15-20 15-20 20-25
Output size (mm) 0.044-0.165 0.044-0.165 0.044-0.165 0.044-0.165 0.044-0.165
Power of main frame (kW) 15 18.5 22 30 37
Fineness of final product (mm) 0.165 capacity (t/h) 1.2-1.8 1.8-2.5 2.3-2.8 2.6-3.2 3.2-4.5
0.075 0.6-1.2 1.2-1.8 1.8-2.3 1.9-2.6 2.4-3.1
0.044 0.6-1.0 0.8-1.2 0.9-1.7 1-1.9 1.8-2.5
