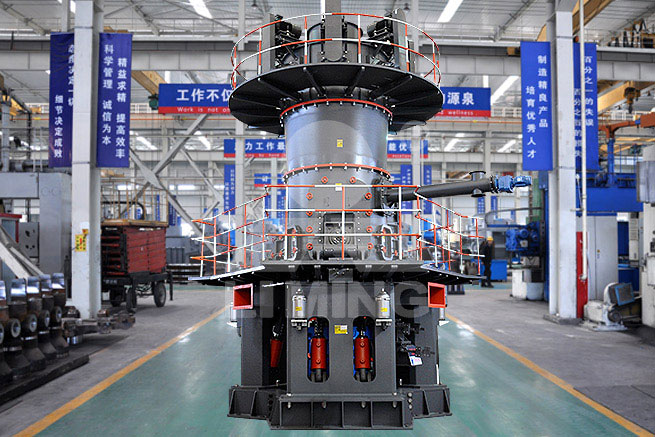

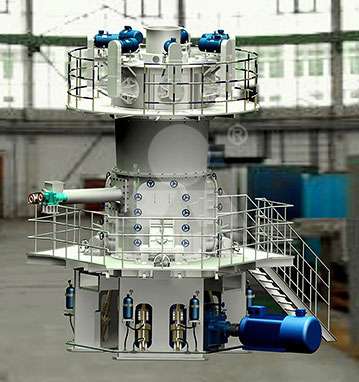

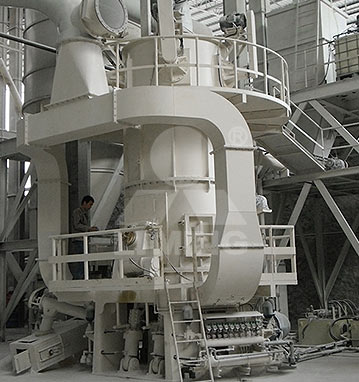

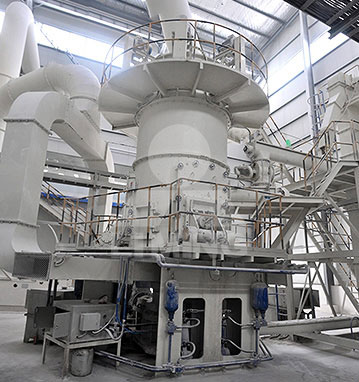

LUM Series Superfine Vertical Roller Grinding Mill

LUM Series Superfine Vertical Roller Grinding Mill

INPUT SIZE: 10-20mm       PRODUCTION CAPACITY: 5-18T/h

According to 30 years’ research and development experience, basing on design of LM Vertical Mill, adopting technology about superfine vertical mill’ s grinding roller made in Germany, LUM series superfine vertical roller grinding mill was produced as the fist choice for nonmetallic ore milling....

Features
    • 1.High grinding efficiency, little pollution to the final products.
    • 2.Advanced, efficient and energy-saving powder-concentrating technology.
    • 3.Secure and efficient operating principles, intelligent operating system.
    • 4.High Output Rate of Finished powders.
    • 5.Long life of tear and wear parts.
    • 6.Environmental friendly, no pollution.
Overview
According to 30 years’ research and development experience, basing on design of LM Vertical Mill, adopting technology about superfine vertical mill’ s grinding roller made in Germany, LUM series superfine vertical roller grinding mill was produced as the fist choice for nonmetallic ore milling, the plant can be widely used in construction, mining machinery, chemical, concrete, etc. industries.
Working Principle

The main motor drives the millstone to rotate through the reduction box, meanwhile, the air flow gets into the mill through air intake. The materials come out of the screw feeder and fall on the center of the millstone, and then they will move from the center to the edge of the millstone under the affect of centrifugal force. When they move across the grinding zone, they will get grinded by the rollers. The materials in the air flow will go through the rotor vanes on the separator above. The coarse powder will go back to the millstone while the eligible powder will go out of the mill together with the air flow and get collected by the powder collector. Those collected powder is the final products of the LUM grinding mill. The final products can be in different fineness through adjusting the rotating speed of the rotor of the powder concentrator.

Specifications
   Model    Main engine power (kW) Power of fan (kW) Number of multi-head powder concentrator×power Input size (mm) Input moisture Quantity of roller (pcs) Less than 2μm=30%
capacity (t/h)
Less than 2μm=45%
capacity (t/h)
Less than 2μm=60%
capacity (t/h)
LUM
15-3X
220-280 180-200 6×15kW <10mm <3% 3 9-12 5.5-7.5 3-4
LUM
16-3X
315-400 250-280 6×22kW 12-16 7-9 /
LUM
17-3X
355-450 325-355 8×22kW 14-18 10-12 /

Note:The data in the table is based on grinding calcite. Because of the difference in the origin of materials, the data is for reference only. Any change of technical data will not be advised additionally.
