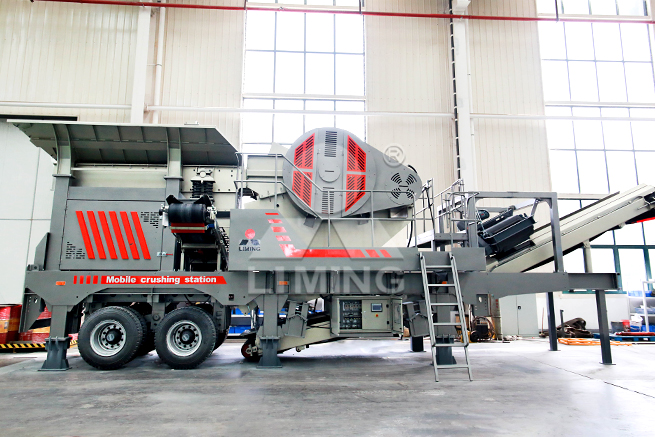

NK Mobile Primary Crushing Plant

NK Mobile Primary Crushing Plant

INPUT SIZE: ≤680mm       PRODUCTION CAPACITY: 150-350 T/h

The NK series mobile plant is a high-quality, high-capacity and practical tire mobile plant that has been developed by Liming Heavy Industry to meet the diversified needs of customers....

Features
    • 1. The host computer is specially developed for the mobile plant, with reliable performance and high output.
    • 2. Overall modular design, strong universal interchangeability.
    • 3. Thin oil self-lubrication mode, with good lubrication effect and long maintenance cycle, saving lubricating oil and labor cost.
    • 4. Adopt the advanced technology design, with long service life and high crushing ratio.
    • 5. Transportation without disassembly parts, eliminating the need for on-site installation
    • 6. Fast installation and debugging, which can be put into production 24 hours during the transition.
    • 7. The new car integrated intelligent automatic control system will make the operation, maintenance and adjustment of the crushing process more convenient and accurate.
    • Liming Heavy Industry has sales and service network all over the world, providing convenient, quick and professional technical support and after-sales service for you at any time and anywhere.
Overview

NK series mobile plant is committed to providing customers with more comprehensive, systematic and flexible modular solutions. It can be widely used in metal and nonmetal mines, cement, sand, metallurgy, construction waste treatment and other industries.

Working Principle

NK series mobile plant is equipped with crushing unit interchange system, which only needs to reinvest the cost of single machine. In a short time, different crushing units can be interchanged on the same equipment.

Specifications

Mobile Primary Jaw Crusher

Model NK100E Mobile Crusher NK1213C Mobile Crusher
Power 138.5kW 228.5 kW
Weight 35T 31T
Capacity 150-350t/h 150-300t/h

 Feeding hopper

Volume 6m³ 6m³
Width 2500mm 2500mm
Vibrating screen
Model FK0936 FK0936
Loading width 960mm 960mm
Loading length 3600mm 3600mm
Crusher
Model PE3040 Jaw Crusher CI5X1213 Impact Crusher
Motor power 110kW 200kW
Feeding depth 760mm -
Maximum feeding size 680mm 550mm
Discharge outlet 70-150 >30mm
Discharge belt
Belt conveyor width 1000mm 1000mm
Discharge Height 3639mm 3639mm

Mobile Medium Crusher

Model NK300H Mobile Crusher (No pre-screening) NK300H Mobile Crusher (With return screening) NK1213 Mobile Crusher (No pre-screening) NK1213 Mobile Crusher (With return screening)
Power 283 kW 323.5 kW 231.5 kW 272 kW
Weight 34T 42T 29T 37T
Capacity 110-440t/h 110-440t/h 150-300 t/h 150-300 t/h
Main machine
Model HPT300 Cone Crusher HPT300 Cone Crusher CI5X1213 Impact Crusher CI5X1213 Impact Crusher
Maximum feeding size 220mm 220mm 300mm 300mm
Power 220kW 220kW 200 kW 200 kW
Vibrating screen
Model - SKX1536 - SKX1536
Power - 15kW - 15kW
Speed - 1000r/min - 1000r/min
Vibration intensity - 4.5G - 4.5G
Screen dimension (W*L) - 1500X3600mm - 1500X3600mm
Belt conveyor
Feeding belt conveyor width 1000mm 1000mm 1000mm 1000mm
Host discharging belt conveyor width 1000mm 1000mm 1000mm 1000mm
Screening transporter belt width - 500mm - 500mm
Return belt conveyor width - 500mm - 500mm
Discharging belt conveyor width - 1200mm - 1200mm
Discharging belt conveyor height 3334mm 3124mm 3334mm 3124mm

Mobile Vibrating Screen

SKX1860 Vibrating Screen (2 layers / 3 layers)
Power 72/79.5 kW
Weight 27/31T
Capacity 70-600t/h
Vibrating screen
Power 22kW
Screen dimension (W*L) 1800X6000mm
Speed 1000r/min
Vibration intensity 4.5G
Belt conveyor
Feeding belt conveyor width 1000mm
Side-out belt conveyor width 650mm
Discharging belt conveyor width 1200mm
