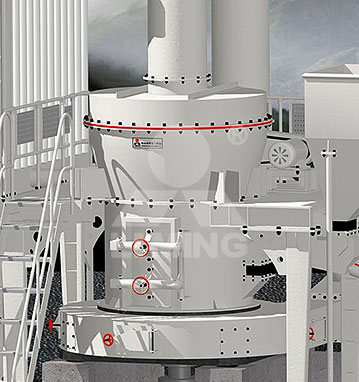

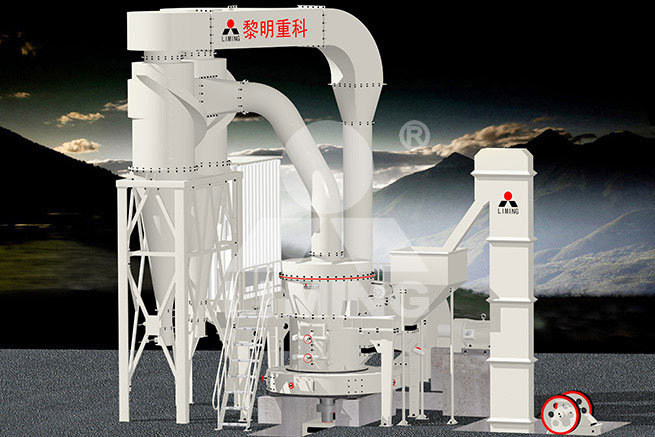

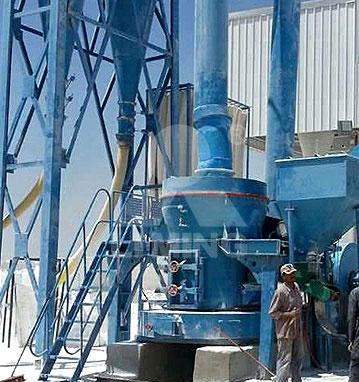

T130X Superfine Grinding Mill

T130X Superfine Grinding Mill

INPUT SIZE: Up to 30mm       PRODUCTION CAPACITY: 4-13T/h

According to market research and customers’ demands, T130X Superfine Grinding Mill is produced on the basis of TGM super pressure trapezium mill. 1.The main frame and the base are completely soft-linked to avoid vibration so that the precision of the classifier is improved.The main motor of T130X Superfine Grinding Mill drives main axle and every layer rota...

Features
    • 1.The main frame and the base are completely soft-linked to avoid vibration so that the precision of the classifier is improved.
    • 2.The bases are made of anti-crack nodular cast iron which boasts high intensity, good anti-vibration ability and excellent impact resistance.
    • 3.It is equipped the reducer that adopts the technology of German Flender, thus the machine’ stability is guaranteed.
    • 4.The main frame and reducer are connected by pin coupling with elastic sleeve to enhance the reliable of the whole equipment.
    • 5.The classifier adopts high density impeller which can improve the fineness and capacity. It also adopts frequency control of motor speed with the characteristic of high degree of accuracy.
    • 6.Bypass powder collector is of low pressure loss and high efficiency.
    • 7.The equipment employs the technology of Same Resistant Arrangement which decreases internal circulation and increases the efficiency.
    • 8.The discharges of the collector and dust remover are in the same line which is convenient for packing. It also reduces the amount of work.
Overview

According to market research and customers’ demands, T130X Superfine Grinding Mill is produced on the basis of TGM super pressure trapezium mill. The plant is perfect equipment for milling non-metallic minerals, which used in metallurgy, construction, chemical industry, mining machinery for the non-inflammable non-explosive brittle materials with humidity below 6%.

Working Principle

The main motor of T130X Superfine Grinding Mill drives main axle and every layer rotating by the power of reducer. Dial drives numbers of rollers rolling and rotating in the ring by pintles. Big materials are crushed into small particles by crusher. Then they are sent to store house by elevator. Vibrating feeder send the materials evenly to the middle of the upper dial. Under the function of the eccentricity, the materials fall into the ring to be pressed, crushed and milled into pieces by rollers. After the first crush, materials fall into the second and third layer of the grinder mill. The pumping of the high-pressure centrifugal blower put the outside air into the ultra-fine mill. The coarse powder will be brought into the classifier.

Specifications

1) Mainframe parameters



Item Unit Specifications &Technical data
Quantity of roller pcs 4
Diameter of roller x Height mm Ф410×210
Diameter of ring x Height mm Ф1280×210
Main shaft speed rmp 1480
Max. feeding size mm <30
Output size mm 0.074—0.038
Capacity t/h 4-13
Weight t 18
Dimension (L×W×H) (mm) 7390×7000×8245



Note:
(1) capacity in the table is referred to calcite, under the condition of 80% passing though.
(2) Any change of parameters and shape shall be subject to the usage and maintenance manual instruction with delivery.

2) Power of equipped systems



Name Item Unit Specifications& Technical data
Motor for mainframe Model   Y280S-4
Power kw 75
Rotating speed rpm 1480
Adjustable speed motor for classifier Model   Y160L-4
Power kw 15
Rotating speed rpm 1460
Motor for elevator Model   Y100L2-4
Power kw 3
Rotating speed rpm 1430
Motor for blower Model   Y280M-4
Power kw 90
Rotating speed rpm 1480
Motor for Jaw Crusher Jaw crusher Model   PE 250×400
Model   Y180L-6
Power kw 15
Rotating speed rpm 970
Electromagnetic vibration feeder Model   GZ3F
Power W 200
