K series Mobile Cone Crusher

K series Mobile Cone Crusher

INPUT SIZE: 52-360mm       PRODUCTION CAPACITY: 70-450T/h

There are medium and small sized materials can be screened without primary crushing, so it is the best choice for mobile crusher to equip grizzly bar hopper with pre-screening function. Grizzly bar hopper combines screening and stockpile together, there is no need to add equipment or cost by moving grizzly bar hopper.A body in common use of 10 kinds of model...

Features
    • 1.Equipped with high-efficiency and large capacity single cylinder cone crusher newly
    • 2.Reliable host for fine crushing
    • 3.Application from one single mobile plant to multiply combined plants
    • 4.Independent unit satisfies customers’ requirements about production of stones
    • 5.Flexible solutions meet the requirements
    • 6.Optional switch for host to satisfy customer's need
    • 7.Quick opening process with flexible parking function
Overview

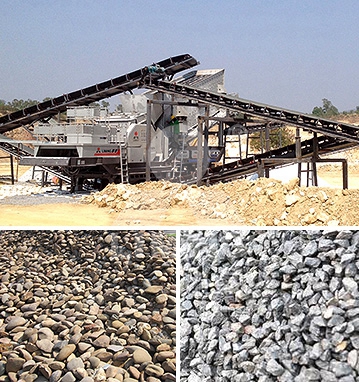

There are medium and small sized materials can be screened without primary crushing, so it is the best choice for mobile crusher to equip grizzly bar hopper with pre-screening function. Grizzly bar hopper combines screening and stockpile together, there is no need to add equipment or cost by moving grizzly bar hopper. The procedure called “crush first and then screen” or “screen first and then crush” makes solutions more flexible.

3 vibrating screens and grizzly bar hopper with different models can be chose to update crushers by adding screening function. The frame, as a carrying platform, needn’t invest additionally, and the stone crushing plant will be scaled up by buying cone crusher or impact as main equipment from Liming.

There are 9 types of cone crushers and 6 types of impact crushers you can choose for primary crushing plant, which can satisfied all secondary crushing. whose final products are good shape. The maximum capacity of pure screening + grizzly bar hopper can be 400t/h, besides, A+t/h is the largest preparedness capacity of K series Secondary Crushing And Screening Plant.

Working Principle

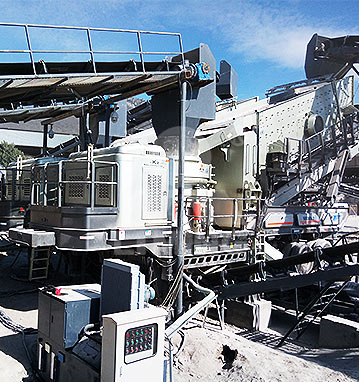

A body in common use of 10 kinds of models, and crushing unit interchange system reduces the investment and production costs. In a short time, crushers with different models are interchangeable in the same mobile crusher. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.

Specifications
Model Feeding Equipment Crushing Equipment Max. preparedness capacity(t/h) Overall Dimension Weight (t)
Model Model Max. Feeding Size(mm) output
(t/h)
Transport dimension (need tear-down)
KC75-2D 3YZS1848 CS75B 102-175 A A+(20~50) 16850×3000×4500(mm) 50
KC160-2D 3YZS1860 CS160B 168-192 A A+(30~70) 16850×3000×4500(mm) 65
KT100-2D 3YZS1848 HST100H 52-192 A A+(20~50) 16850×3000×4500(mm) 40

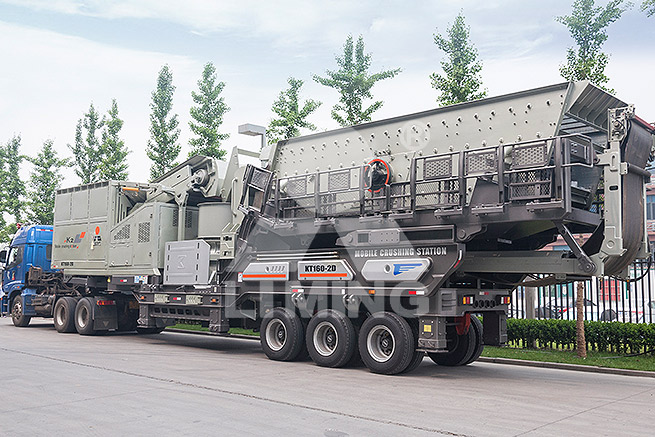

KT160-2D 3YZS1860 HST160H 72-288 A A+(30~70) 16850×3000×4500(mm) 48
KT250-2D 3YZS1860 HST250H 88-360 A A+(30~70) 16850×3000×4500(mm) 55
KT250-2D 3YZS2160 HST250H 88-360 A A+(40~90) 16850×3000×4500(mm) 59
KH300-2D 3YZS1860 HPT300C2 84-168 A A+(30~70) 16850×3000×4500(mm) 56
KH300-2D 3YZS2160 HPT300C2 84-168 A A+(40~90) 16850×3000×4500(mm) 60
KH300-2D 4YZS2160 HPT300C2 84-168 A A+(20~80) 16850×3000×4500(mm) 61
KF1214-2D 3YZS1860 PF1214 300 90-180 120-240 16120×3000×4500(mm) 60
KF1214-2D 3YZS1860 PFW1214Ⅲ 250 90-190 120-250 16120×3000×4500(mm) 58
KF1315-2D 3YZS2160 PF1315 300 120-250 150-320 16700×3100×4500(mm) 70
KF1315-2D 3YZS2160 PFW1315Ⅲ 300 150-280 180-350 16120×3000×4500(mm) 68
KF1315-2D 4YZS2160 PFW1315Ⅲ 300 150-280 150-280 16120×3100×4200(mm) 70
KF1318-2D 3YZS2160 PFW1318Ⅲ 300 220-350 250-430 16120×3100×4500(mm) 74
KS1848-1D 3YZS1848     50-250 70-300 16910×3000×4500(mm) 33
KS1860-1D 3YZS1860     60-300 70-350 16910×3000×4500(mm) 35
KS2160-1D 3YZS2160     80-400 90-450 16910×3000×4500(mm) 41
