Home > Products > Grinding Equipment >
TGM Super Pressure Trapezium Mill

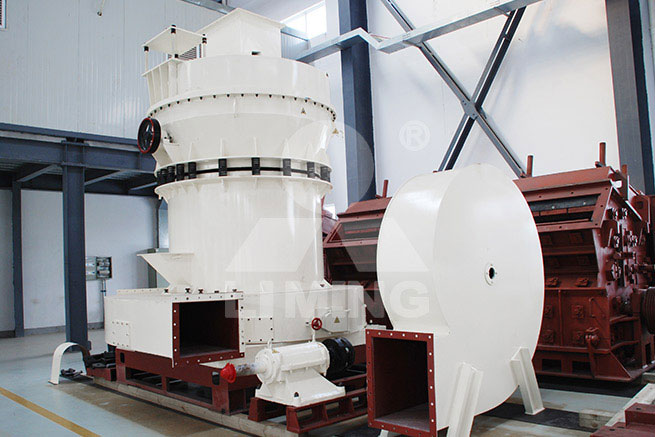

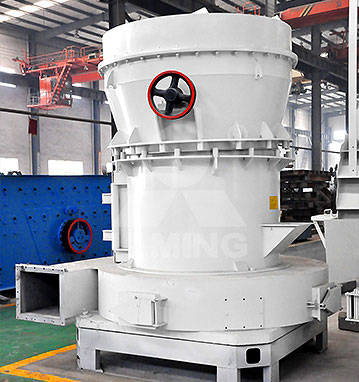

TGM Super Pressure Trapezium Mill

INPUT SIZE: Up to 35mm       PRODUCTION CAPACITY: 3-22T/h

TGM super pressure trapezium mill mainly includes main frame, speed reducer, separator, blower, bag filter covered by square box, connecting pipes, cyclone collector, and motor etc.6.The gap adjustment of the end of the separator and shell is more convenient and faster, which improved the efficiency of the powder collection.The mainframe is driven by the spee...

Features
    • 1.Innovative roller, grinding ring and blade designs.
    • 2.Roller linkage supercharger.
    • 3.Flexible connection.
    • 4.Efficient and practical, product fineness can be adjusted.
    • 5.Energy efficient centrifugal fan.
    • 6.The gap adjustment of the end of the separator and shell is more convenient and faster, which improved the efficiency of the powder collection.
Overview
TGM super pressure trapezium mill mainly includes main frame, speed reducer, separator, blower, bag filter covered by square box, connecting pipes, cyclone collector, and motor etc. The complete set of TGM super pressure trapezium mill is composed of jaw crusher, bucket elevator, electromagnetic grizzly feeder, and electric panel. TGM Series Super Pressure Trapezium Mill can grind all kinds of non-flammable and non-explosive minerals with Mohs’ hardness less than 9 and humidity less than 10%, and TGM Series Super Pressure Trapezium Mill is widely used in metallurgy, manufacture of building materials, chemical industry, mining industry, etc.
Working Principle

The mainframe is driven by the speed reducer through the central axis in the mill. The quincunx stand connected with the upper part of central axis, at the quincunx stand and rollers there is shovel system. Materials are fed into the space between rollers and shovels when they are turning, and then be grinded by the pressure produced when rollers are turning, thus powder is made.

Specifications



Model Maximum feed size(mm) Output fineness (mm) Main modaft speed(rpm) Roller Ring Capacity
(tph)
Dimension(L×W×H) (mm) Weight (t)
Quantity Diameter (mm) Height
(mm)
Diameter (mm) Height
(mm)
TGM100 25 1.6~0.045 the finest 0.038 1480 4 310 170 950 170 3~8.8 7300×7160×8300 16
TGM130 30 1480 5 410 210 1280 210 6~13 8800×7500×9700 26.1
TGM160 35 1480 6 440 270 1600 270 13~22 12550×5700×8355 35
TGM130X 30 0.074~0.038 1480 4 410 210 1280 210 4~13 7390×7000×8245 18





Model Main mill(KW) Classifier (KW) Bucket elevator(KW) Blower (KW) Jaw crumoder Feeder
Model Power (KW) Model Power (W)
TGM100 37 5.5 3 37 PE250×400 15 GZ2F 0.15
TGM130 75 7.5 3 75 PE250×400 15 GZ3F 0.2
TGM160 132 18.5 4 132 PE250×750 22 GZ3F 0.2
TGM130X 75 15 3 90 PE250×400 15 GZ3F 0.2
