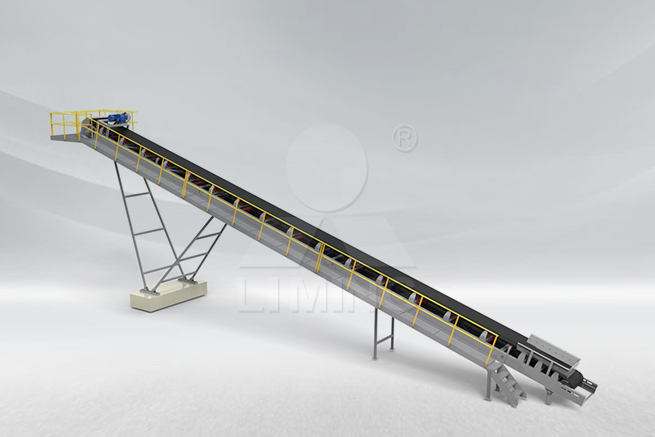

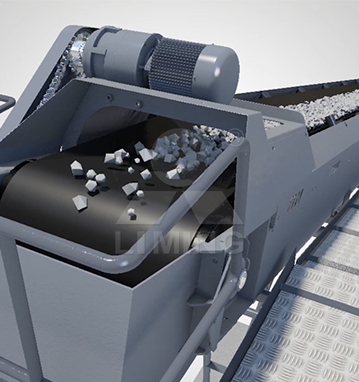

B6X series belt conveyor

B6X series belt conveyor

INPUT SIZE: ≤375mm       PRODUCTION CAPACITY: 150-500TPH

B6X series belt conveyors are widely used in mining, metallurgy, coal, transportation, electric power, building materials, chemical industry, light industry, food and machinery and other industries. It is a new generation of bulk material conveying equipment designed by Liming Heavy Industry based on summing up previous industry experiences and closely combin...

Features
    • 1. Closely combine with the market situation and the needs of customers
    • 2. The component structure is simple, clear and easy for customers to maintain and operate.
    • 3. Repair and replace any part (except motor) with low cost.
    • 4. The fuselage structure is compact, which can reduce the height of steel frame and the overall cost of customers.
Overview
B6X belt conveyor is a bulk material conveying product, which is specially used to deal with various bulk materials with bulk density of 500~2500kg/m3.

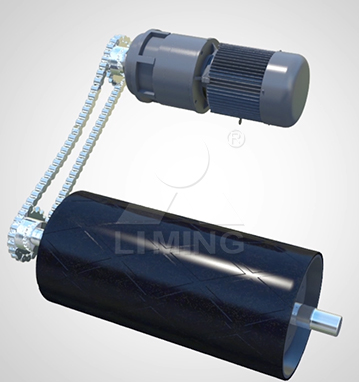

Working Principle

The conveyor belt is used as a traction and load-bearing to continuously convey materials through the movement of the conveyor belt. The belt forms an endless ring belt around the transmission drum and the tension drum. The upper and lower belts are supported by support roller to limit the deflection sag of belt. The tension device provides tension needed for the normal operation of the belt. When working, the driving device drives the transmission drum. The belt is driven by the friction between the driving drum and the conveyor belt. The materials are loaded on the belt and moves with it.

Specifications
Belt width(mm) 500 650 800 1000 1200
Design parameters Stones and aggregate Bulk density ρ=1.6t/m3 Running stacking angle θ=20°
Recommended material size (mm) ≤150 ≤200 ≤300 ≤325 ≤375
Maximum conveying capacity of 17 degrees (t/h) 150 150 250 350 500
Inclination angle Limit value of inclination angle is related to material
Theoretical speed (The power value in brackets is 22kw and above) (m/s) 1.5 1.6 1.4 1.4 1.5(1.4)
4YKN2160 4x12.6 20 5~150 400 800-900
2YKN2460 2x14.4 20 5~150 400 800-900
3YKN2460 3x14.4 20 5~150 400 800-900
4YKN2460 4x14.4 20 5~150 400 800-900
Tightening method Screw tightening
Length of belt conveyor (m) 8≤L≤30
Drive drum diameter (mm) φ323 φ375 φ400 φ424 φ448
Directional drum diameter (mm) φ271 φ323 φ375 φ400 φ424
Upper idler roller dimensions φ89x200 φ89x250 φ89x315 φ108x380 φ108x465
Lower idler roller dimensions φ89x600 φ89x750 φ89x900 φ108x1100 φ108x1300
Belt model NN-100 4×(4+1.5) NN-100 4×(4+1.5) NN-100 4×(4+1.5) NN-100 5×(5+2) NN-100 5×(5+2)
