Mobile Crushing Screening Plant

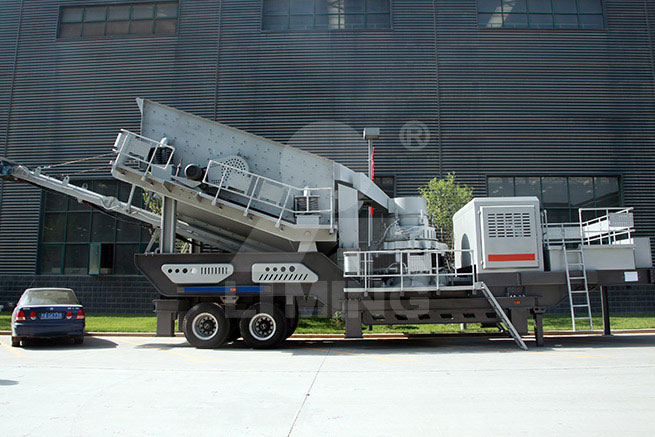

Mobile Crushing Screening Plant

INPUT SIZE: 52-360mm       PRODUCTION CAPACITY: 70-450T/h

In your applications, the mobile crusher equipped with high-efficiency CS, HST, or HPT series cone crusher can make your stone crushing plat high efficiency, high crushing ratio and well-distributed final product size. Combining high-speed, long strokes and perfect crushing chamber together, CS, HST, or HPT series cone crusher are better than old-fashioned co...

Features
    • 1.Application from one single mobile plant to multiply combined plants
    • 2.Equipped with high-efficiency and large capacity single cylinder cone crusher newly
    • 3.Reliable host for fine crushing
    • 4.Lager capacity because of adjustable angle of the vibrating screening
    • 5.Optional switch for host to satisfy customer's need
    • 6.Quick opening process with flexible parking function
Overview

In your applications, the mobile crusher equipped with high-efficiency CS, HST, or HPT series cone crusher can make your stone crushing plat high efficiency, high crushing ratio and well-distributed final product size. Combining high-speed, long strokes and perfect crushing chamber together, CS, HST, or HPT series cone crusher are better than old-fashioned cone crusher in functions, capability, efficiency and quality.

There are 9 types of cone crushers and 6 types of impact crushers you can choose for mobile crushing, whose final products are good shape. Equipped with vibrating screen, the mobile crusher can screen suitable materials and deliver them into the next crushing segment. When customers need cone crusher used in medium crushing or fine crushing in the second or third crushing segment, CS, HST, or HPT series cone crusher can be chose in order to meet their requirements. Besides, A+t/h is the largest preparedness capacity of K series Secondary Crushing And Screening Plant.

Working Principle

There are crushing unit interchange system and screening unit interchange system to meet different requirements. That is to say, in a short time, crushers with different models are interchangeable in the same mobile crusher, and so are vibrating screens. Basing on cooperation between high-efficiency equipment, the perfect plant has advantages of wide usage and comprehensive functions, which can maximize the value of customers.

Specifications
Model Feeding Equipment Crushing Equipment Max. preparedness capacity(t/h) Overall Dimension Weight (t)
Model Model Max. Feeding Size(mm) output
(t/h)
Transport dimension (need tear-down)
KC75-2 3YZS1848 CS75B 102-175 A A+(20~50) 12600×3000×4500(mm) 41
KC160-2 3YZS1860 CS160B 168-192 A A+(30~70) 13800×3000×4500(mm) 59
KT100-2 3YZS1848 HST100H1 52-192 A A+(20~50) 12600×3000×4500(mm) 32
KT160-2 3YZS1860 HST160H1 72-288 A A+(30~70) 13800×3000×4500(mm) 41
KT250-2 3YZS1860 HST250H 88-360 A A+(30~70) 13800×3000×4500(mm) 49
KT250-2 3YZS2160 HST250H 88-360 A A+(40~90) 13800×3000×4500(mm) 53
KH300-2 3YZS1860 HPT300C2 84-168 A A+(30~70) 13800×3000×4500(mm) 50
KH300-2 3YZS2160 HPT300C2 84-168 A A+(40~90) 13800×3000×4500(mm) 54
KH300-2 4YZS2160 HPT300C2 84-168 A A+(20~80) 13800×3150×4200(mm) 56
KF1214-2 3YZS1860 PF1214 300 90-180 120-240 13800×3000×4500(mm) 53
KF1214-2 3YZS1860 PFW1214Ⅲ 250 90-190 120-250 13800×3000×4500(mm) 50
KF1315-2 3YZS2160 PF1315 300 120-250 150-320 13800×3150×4500(mm) 62
KF1315-2 3YZS2160 PFW1315Ⅲ 300 150-280 180-350 13800×3150×4500(mm) 60
KF1315-2 4YZS2160 PFW1315Ⅲ 300 150-280 150-280 13800×3150×4500(mm) 62
KF1318-2 3YZS2160 PFW1318Ⅲ 300 220-350 250-430 13800×3150×4500(mm) 66
KS1848-1 3YZS1848     50-250 70-300 12590×3000×4500(mm) 26
KS1860-1 3YZS1860     60-320 70-350 13800×3000×4500(mm) 27
KS2160-1 3YZS2160     80-400 90-450 13800×3000×4200(mm) 31
