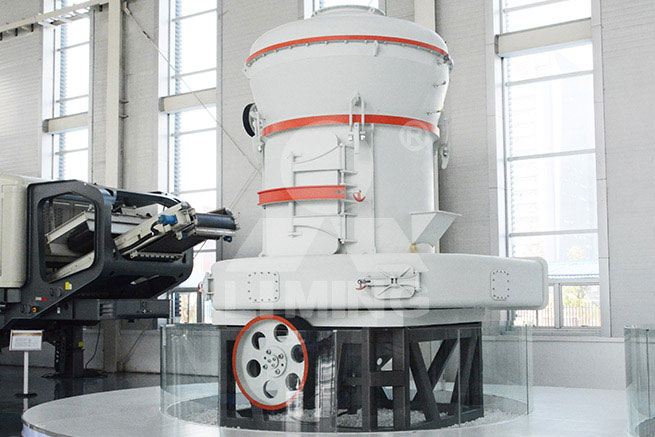

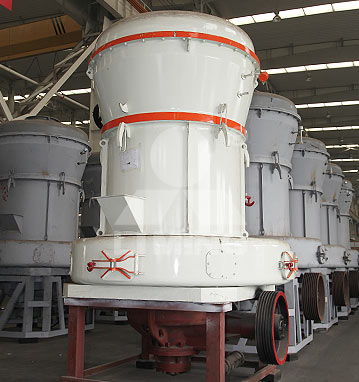

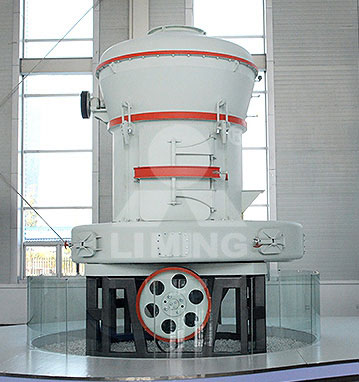

MTW European Trapezium Mill

MTW European Trapezium Mill

INPUT SIZE: Up to 50mm       PRODUCTION CAPACITY: 3.5-45T/h

MTW European Type Trapezium mill is the newest grinding equipment which enjoys many patented technology and reaches the international advanced level.3.With reliable and advanced technology of Inner automatic Thin-oil lubricating system.First, raw material should be crushed by the jaw crusher to the size specified, and then the crushed stuff is elevated into a...

Features
    • 1.Linkage supercharging device of rollers, stable operation and advanced productivity.
    • 2.Bevel gear overall drive, less energy loss, higher efficiency.
    • 3.With reliable and advanced technology of Inner automatic Thin-oil lubricating system.
    • 4.Arc air channel, less air flow loss, better material fluidity.
    • 5.Special design of rollers and ring, replaceable curved shovel edge, higher efficiency and lower cost-in-use.
    • 6.No resistance snail shell.
    • 7.Adjustable output size, efficient powders production.
    • 8.High efficiency and precision of powders collection.
    • 9.Humanized design, easy to use.
    • 10.Environmental protection.
Overview

MTW European Type Trapezium mill is the newest grinding equipment which enjoys many patented technology and reaches the international advanced level.

It is suitable to process non-flammable and non-explosive materials with moisture less than 6% and Mohs’ hardness less than 9 such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnetite, iolite, vermiculite, barite, gypsum earth, fluorite, etc.

Working Principle

First, raw material should be crushed by the jaw crusher to the size specified, and then the crushed stuff is elevated into a hopper from which the stuff is loaded, through the vibrating feeder, evenly and continuously into the grinding chamber for power-processing. After this, the ground stuff is carried by the air into the separator for screening. The fine powder are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set's airflow system is closely sealed up and circulated under condition of negative pressure.

Specifications

Table 1



Items MTW110 MTW138 MTW138Z MTW175 MTW175Z MTW215 MTW215Z
Q'ty of Rollers(PCS) 4 4 4 5 4 (5) 5 5
Major diameter of roller(mm) Ф360×190 Ф460x240 Ф460×240 Ф520x280 Ф580×280
(520×280)
Ф640x320 Ф640×320
Inner Diameter of Ring (mm) Ф1100×190 Ф1380×240 Ф1380×240 Ф1750×280 Ф1750×280 Ф2150×320 Ф2150×320
Main mill Rotating speed (r/min) 120 96 96 75 75 65 55-70
Feeding size (mm) <30 <35 <30 <40 <35 <50 <40
Finished Powder Sizes (mm)

1.6-0.045 the finest 0.038

1.2-0.05
Capacity (t/h) 3.5-10 6-15 6-20 11-25 11-35 20-50 20-50
Overall Dimension (L×W×H)(mm) 8425×7933
×8642
10920×9655
×10227
10920×9470
×10227
12095×10023
×9916
12195×9555
×9916
14500×11200
×10400
14.957×12493
×11560
Weight (t) 18 28.5 28.5 46 46 96 97.0122



Table 2



Name Item MTW110 MTW138 MTW138Z MTW175 MTW175Z MTW215 MTW215Z
Motor for
mainframe
Power(Kw) 55 90 90(110) 160 160(185) 280 280
Model YX3-280M-6 YX3-315M-6 YX6-315M-6 Y2-355M2-8 Y2-355M2-8 Y3-400-8 Y3-400-8
Rotating speed(r/min) 980 990 990 740 740 740 740
Adjustable speed
motor for classifier
Power(Kw) 7.5 22 18.5 37 30 90 55
Model YVP160M-6 YVP200L2-6 YVP200L2-6 YVP250M-6 YVP250M-6 YVP-280M-4 YVF2-280M-6
Rotating speed(r/min) 1440 1480 980 1480 980 1480 980
Motor for
centrifugal blower
Power(Kw) 55 110 110(132) 200 200(220) 315 315
Model YX3-250M-4 YX3-112M-4 YX3-315S-4 YX3-250M-4 YX3-315L2-4 YX3-160M-4 YX3-355L-4
Rotating speed(r/min) 1480 1440 1480 1480 1480 1440 1480
