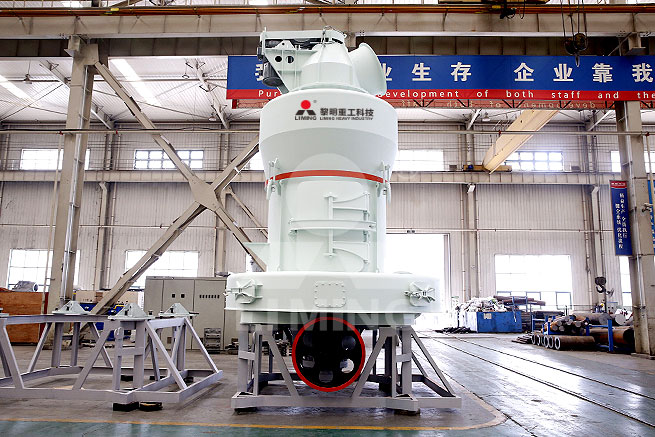

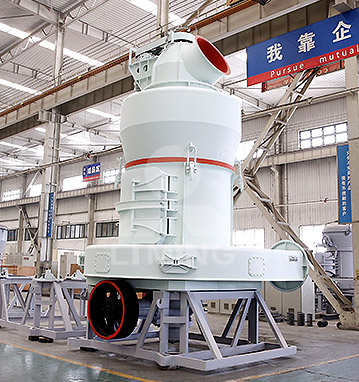

MTW Heavy type Trapezium Mill

MTW Heavy type Trapezium Mill

INPUT SIZE: 0-50mm       PRODUCTION CAPACITY: 3.5-50T/h

According to new German technology, MTW Heavy type Trapezium Mill is designed which is possess of many creative designs including bevel gear overall drive, dilute oil lubrication system and hanging type cage classifier. With mature technology and advanced transmission, this machine can satisfy customers’ requirements about productivity because its capacity ...

Features
    • 1.Bevel gear overall drive. Transmission chain is less but transmission ratio is accurate. Energy consumption is reduced by 20-30%.
    • 2.This machine adopts internal thin oil lubrication system to get better lubrication effect. The oil exchange cycle is long and it is easy to maintain.
    • 3.This machine adopts new hanging type cage classifier, which can improve classifying efficiency effectively. There is frequency conversion control and the output size of final products can be regulatable.
    • 4.There are 7 core patents and it adopts new German technology. MTW Heavy type Trapezium Mill has been high-quality products because of high efficiency and low running costs.
    • 5.This machine has got environmental protection certification in industrial products, and it can meet the demand of environmental protection.
Overview
Based on traditional MTW European type Trapezium Mill, this Heavy type grinding mill is launched to the market by adopting European innovation concept and international advanced technology. It is a new grinding machine with many national patents, and it has been a typical product for Liming Heavy Industry.
Working Principle

First, raw material should be crushed by the jaw crusher to the size specified, and then the crushed stuff is elevated into a hopper from which the stuff is loaded, through the vibrating feeder, evenly and continuously into the grinding chamber for power-processing. After this, the ground stuff is carried by the air into the separator for screening. The fine powder are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set's airflow system is closely sealed up and circulated under condition of negative pressure.

Specifications

Table 1



Items MTW110 MTW138 MTW138Z MTW175 MTW175Z MTW215 MTW215Z
Q'ty of Rollers(PCS) 4 4 4 5 4 (5) 5 5
Major diameter of roller(mm) Ф360×190 Ф460x240 Ф460×240 Ф520x280 Ф580×280
(520×280)
Ф640x320 Ф640×320
Inner Diameter of Ring (mm) Ф1100×190 Ф1380×240 Ф1380×240 Ф1750×280 Ф1750×280 Ф2150×320 Ф2150×320
Main mill Rotating speed (r/min) 120 96 96 75 75 65 55-70
Feeding size (mm) <30 <35 <30 <40 <35 <50 <40
Finished Powder Sizes (mm)

1.6-0.045 the finest 0.038

1.2-0.05
Capacity (t/h) 3.5-10 6-15 6-20 11-25 11-35 20-50 20-50
Overall Dimension (L×W×H)(mm) 8425×7933
×8642
10920×9655
×10227
10920×9470
×10227
12095×10023
×9916
12195×9555
×9916
14500×11200
×10400
14.957×12493
×11560
Weight (t) 18 28.5 28.5 46 46 96 97.0122



Table 2



Name Item MTW110 MTW138 MTW138Z MTW175 MTW175Z MTW215 MTW215Z
Motor for
mainframe
Power(Kw) 55 90 90(110) 160 160(185) 280 280
Model YX3-280M-6 YX3-315M-6 YX6-315M-6 Y2-355M2-8 Y2-355M2-8 Y3-400-8 Y3-400-8
Rotating speed(r/min) 980 990 990 740 740 740 740
Adjustable speed
motor for classifier
Power(Kw) 7.5 22 18.5 37 30 90 55
Model YVP160M-6 YVP200L2-6 YVP200L2-6 YVP250M-6 YVP250M-6 YVP-280M-4 YVF2-280M-6
Rotating speed(r/min) 1440 1480 980 1480 980 1480 980
Motor for
centrifugal blower
Power(Kw) 55 110 110(132) 200 200(220) 315 315
Model YX3-250M-4 YX3-112M-4 YX3-315S-4 YX3-250M-4 YX3-315L2-4 YX3-160M-4 YX3-355L-4
Rotating speed(r/min) 1480 1440 1480 1480 1480 1440 1480
