YGM Series Suspension Mill

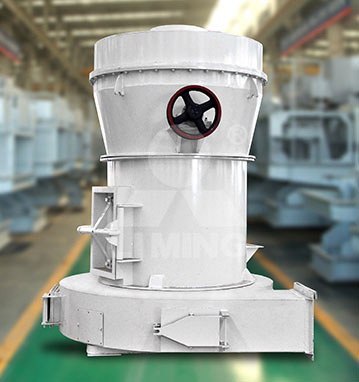

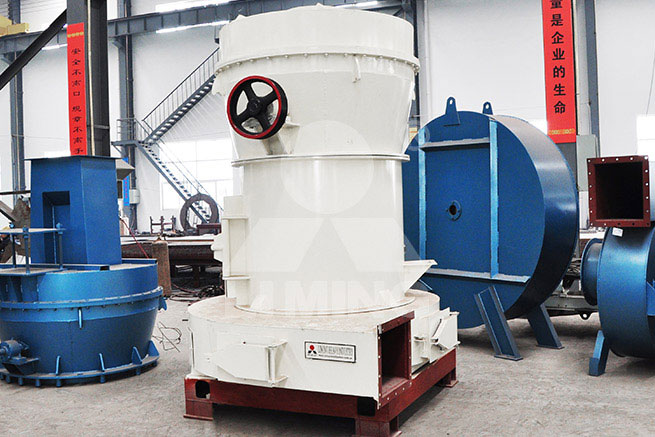

YGM Series Suspension Mill

INPUT SIZE: Up to 30mm       PRODUCTION CAPACITY: 1-9.5T/h

YGM High pressure suspension mill, the new patented product, suitable for non-flammable and non-explosive minerals with Mohs’ hardness less than 9 and humidity less than 6%. 1.Unique design. In the grinding chamber of main machine, a 1500kg—2000kg. The circular air returns back to the blower that the above process will be repeated, and the remaining air ...

Features
    • 1.Unique design. In the grinding chamber of main machine, a 1500kg—2000kg of compressing device is designed on the upper part of the star rack. With the same power, the output is improved by 10-30%, the grinding force imposed on the material by the grinding device is improved by 800-1500kgf, and the fineness of the finished product can reach 1000 mesh.
    • 2.Good applicability to materials. It is applicable to different kinds of materials with Moh’s hardness under Level 9.3.
    • 3.The dedusting effect is absolutely in accordance with national standards.
    • 4.The grinding roller adopts the most advanced and effective processing technique. Good seal effect is achieved through the overlapping multi-stage seal.
    • 5.Long replacement period of the grinding roller and the grinding ring.
    • 6.The grinding device adopts overlapping multi-stage sealing and the sealing performance is in good condition.
Overview
YGM High pressure suspension mill, the new patented product, suitable for non-flammable and non-explosive minerals with Mohs’ hardness less than 9 and humidity less than 6%. The plant is widely used in metallurgy, construction, chemical, mining machinery, highway, water industry based on its high-efficiency and low energy-consumption.
Working Principle

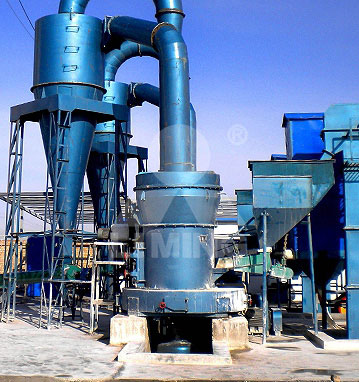

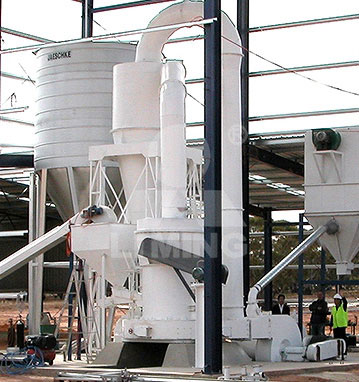

When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring; the materials after grinding are brought into the separator along with the air from the blower, and the qualified fine powder became final products and come into the cyclone powder collector, the other unqualified powder fall down to be re-grinded. The circular air returns back to the blower that the above process will be repeated, and the remaining air enters the bag filter in order to protect the environment.

Specifications
Model Piece of roller Size of the roller (mm) Size of the ring (mm) Feed size(mm) Fineness of powder (mm) Capacity (t/h) Motor power (kW) Weight (without motor)(t)
YGM65 3 Φ210×150 Φ650×150 ≤15 0.033-0.613 0.4-1.8 15 3.6
YGM75 3 Φ260×150 Φ780×150 ≤15 0.033-0.613 1-3 18.5 4.8
YGM85 3 Φ270×150 Φ830×150 ≤20 0.033-0.613 1.2-4 22 8
YGM95 4 Φ310×170 Φ950×170 ≤25 0.033-0.613 2.1-5.6 37 14
YGM130 5 Φ410×210 Φ1280×210 ≤30 0.033-0.613 2.5-9.5 75 24
