MSB Series Coarse Powder Mill

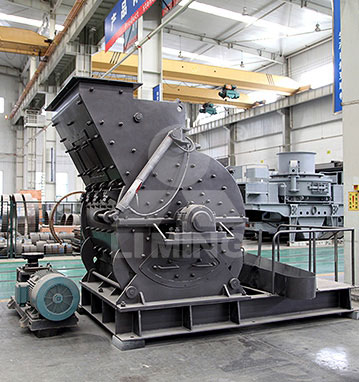

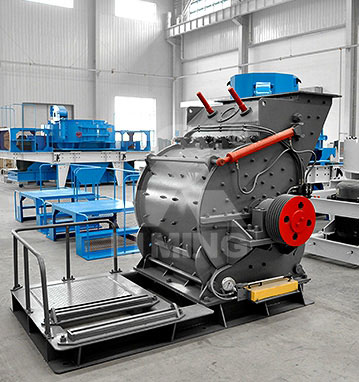

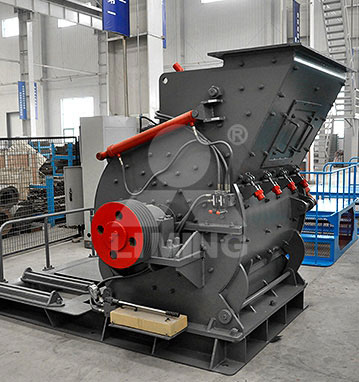

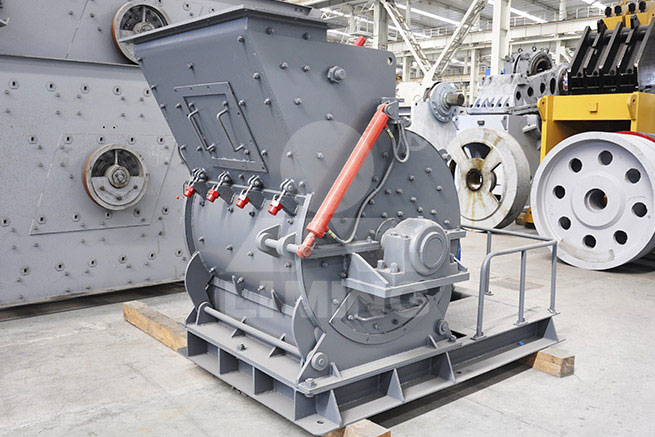

MSB Series Coarse Powder Mill

INPUT SIZE: Up to 30mm       PRODUCTION CAPACITY: 8-15T/h

CM European type coarse powder mill is a kind of new high-tech milling machine to meet the requirements of sand processing customers.1.High efficiency of wear material, wear evenly, the lifetime is three times higher than that of Raymond Mill.5.Products out of this machine can be used to make firebrick, unburned brick, block and other new building materials....

Features
    • 1.High efficiency of wear material, wear evenly, the lifetime is three times higher than that of Raymond Mill.
    • 2. High percentage of sand can be produced by this machine.
    • 3.The device is a highly efficient desulfurization equipment of power plant. It can grind into fine power less than 1-2mm, the desulfurization effect is better.
    • 4.This machine can be used as pre-grind equipment before ball mill; the efficiency will increase 50%.
    • 5.Products out of this machine can be used to make firebrick, unburned brick, block and other new building materials.
    • 6.Mainly used for pre-processing of various crushable non-inflammable non-explosive brittle materials with Mohs’ hardness less than nine.
Overview
CM European type coarse powder mill is a kind of new high-tech milling machine to meet the requirements of sand processing customers. Based on our experts’ many years’ research experience in the milling industry and considering recommendations and requirements of domestic and foreign clients, it is the ideal equipment to replace Raymond Mill, ball mill, and other traditional mill which only process power materials. It is high-efficiency equipment and widely applied in quartz sand, silica sand, foundry sand, fine sand and other sand abrasive industry. By being a component of closed production lines, it can produce various size products of better effect.
Working Principle

Step with main shaft, bulk disk and roller bracket is driven by motor through reducer. Installed above bracket, roller assembly rotates with main shaft and swings freely meantime, this bring a large centrifugal force, which scatters bulk materials evenly in grinding intermediate layer between central roller and ring. The bulk materials are ground into powder and fall on the bottom, and then discharged from discharging opening under the effect of synchronously-rotating scraper.

Specifications
Name Parameter Remark
Model Power
Model MSB1004
Roller quantity 4pcs
Max. feeding size <30mm Too hard material<20mm
Product size 70-90%<2mm Adjustable, check below
Capacity 8-15ton/hour Relative to average size and hardness of feeding material
Main motor power 37-45kW Use small motor if use fine material and want low capacity
Main motor Model Y2-225M-4 45 kW
Overall size(L×W×H) 1.87×1.5×2.58(m) Including main motor, decelerator and main unit
Largest single pc weight 900kg
Total weight(excluding electricity control cabinet) 8ton Decelerator weight 1.7 ton
Jaw crusher of fine crushing PEX150×750 15kW
Bucket elevator TH250 3kW Speed≥1.2m/s
Electromagnetic Vibrating feeder GZ3 0.2kW Distance between inlet and outlet 1000
