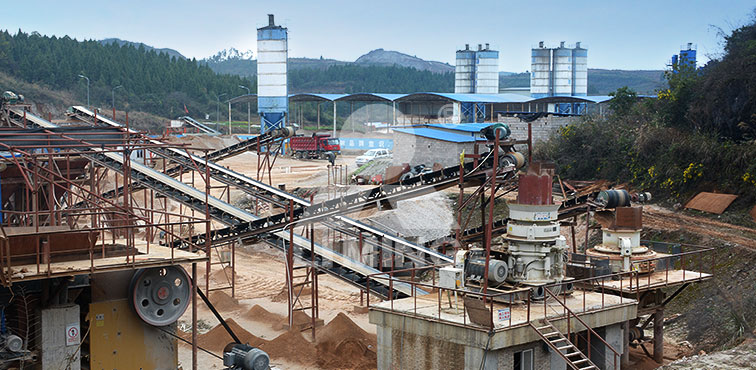

200T/H High-spec Crushing and Screening Plant

Final products size: 0-31.5mm
Capacity: 200tph

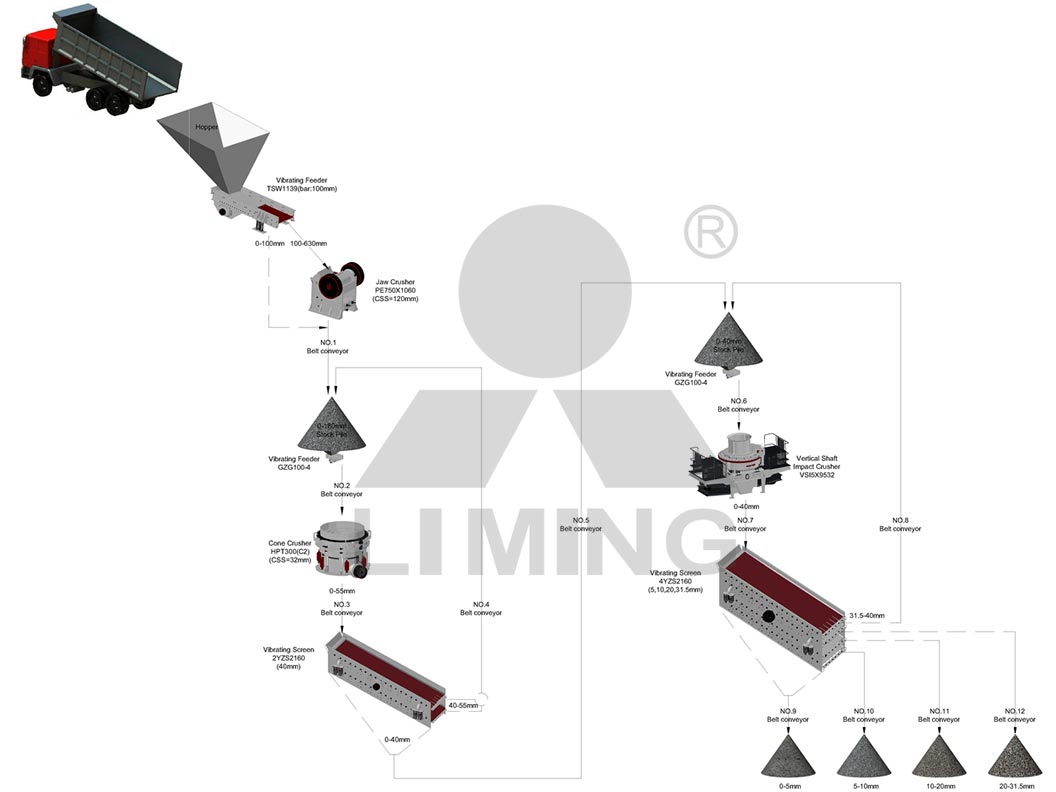

Equipment: Vibrating Feeder TSW1139 → PE Series Jaw Crusher PE750×1060 → HPT Series High-Efficiency Hydraulic Cone Crusher HPT300   Vertical Shaft Impact Crusher 5X9532 → Vibrating Screen 2YZS2160 → Vibrating Screen 4YZS2160

The high-equipped 200tph stone crushing line includes Vibrating Feeder, PE Series Jaw Crusher, HPT Series High-Efficiency Hydraulic Cone Crusher, Vertical Shaft Impact Crusher, Vibrating Screen, etc. This production line is designed based on the requirements of big projects, it can make production high efficiency and final products good shape. Besides, the crushing line not only provides quality raw materials, but also make the mark and strength class of concrete acceptable. Meanwhile, it is a typical aggregate line which comes into being a complete closed-loop from primary crushing to secondary crushing to tertiary crushing to screening. The production line has advantages of high efficiency and final products good shape combined, it can meet the basic needs of our customers. Besides, it can reduce downtime and maintenance time by replacing the worn parts quickly so that the maintenance cost is quick low. The crushing line is widely used in various metallic and nonmetallic ores, cement, aggregate, metallurgy, etc. It is also applicable to crush various stones with the Platts Hardness below 16, such as Iron ore, granite, basalt, quartzite, cobblestone, limestone, etc.
