Belt Conveyor

Belt Conveyor

INPUT SIZE: 20-40mm       PRODUCTION CAPACITY: 45-1200T/h

The belt conveyor with low consumption produced by our company can effectively transport all kinds of materials.1.High adaptability, strong stability. It can be used under the circumstance temperature ranging from-20℃ to 40℃. The belt conveyor mainly consists of the rack, conveying belt, belt roller, tension device, transmission device. ...

Features
    • 1.High adaptability, strong stability. It can be used under the circumstance temperature ranging from-20℃ to 40℃. The temperature of transferred materials should be lower than 50℃. Herringbone belt conveyor has antiskid which improves the stability.
    • 2.Simple structure, large conveying capacity. The equipment both has simple structure and standard components, which can operate and maintain quickly.
    • 3.Various models, flexible in use. The system can be only one belt conveyors or multi-conveyor or combined with other conveyors in horizon or in slope you can choose according to the requirements of different conveying processes.
Overview

The belt conveyor with low consumption produced by our company can effectively transport all kinds of materials.

In the industrial production, belt conveyor, as the link between mechanical equipment, can greatly improve productive efficiency.

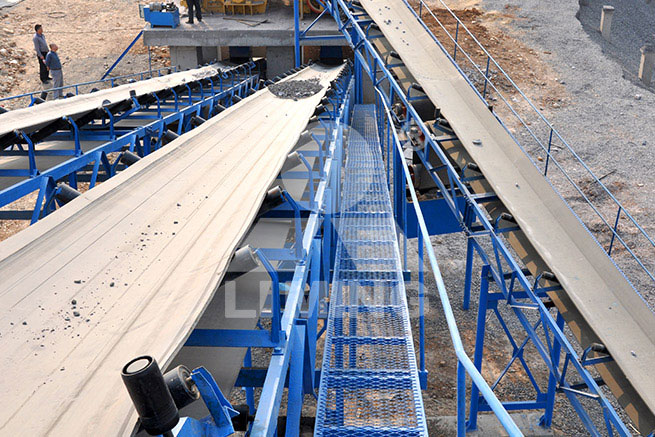

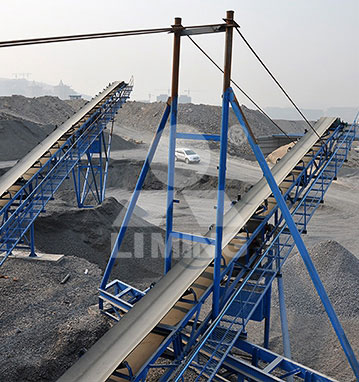

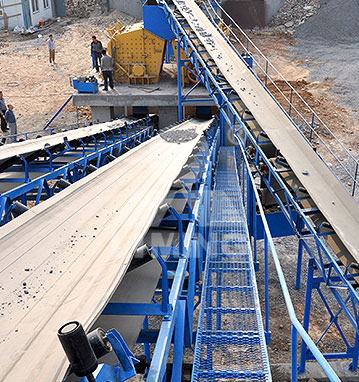

It is widely used in mining, metallurgy, chemical industry, casting, building materials and so on, also in pipeline production, hydropower station construction, sea port and other manufacturing departments. They are used to transfer bulk or packaged materials. According to different transportation requirements, the system can be only one belt conveyors or multi-conveyor or combined with other conveyors in horizon or in slope.

It can be used under the circumstance temperature ranging from-20℃ to 40℃. The temperature of transferred materials should be lower than 50℃.

Working Principle

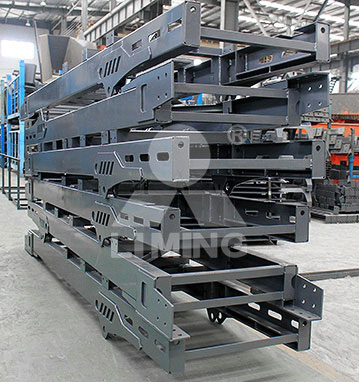

The belt conveyor mainly consists of the rack, conveying belt, belt roller, tension device, transmission device. The machine body is made of the high-quality steel plates connected with each other, forming a rack based on the height difference between the front and back legs. The plane is slant with a certain slant angle. The belt roller, carrier roller, etc are installed on the rack, used to drive and support the conveying belt. The driving mode includes speed-reducing motor driving and electric-roller driving.

Specifications
Belt Width(mm) Belt Length (m) / Power (kW) Belt Speed (m/s) Capacity (t/h)
500 ≤10/18.5 12-20/4-5.5 20-30/5.5-7.5 1.3-1.6 45-90
650 ≤10/18.6 12-20/5.5 20-30/7.5-11 1.3-1.6 70-120
800 ≤10/18.7 10-15/5.5 15-25/7.5-15 1.3-1.6 120-180
1000 ≤10/18.8 10-20/7.5-11 20-25/11-22 1.3-2.0 160-250
1200 ≤10/18.9 10-20/11 20-25/15-30 1.3-2.0 200-400
1400 ≤10/18.5 10-18/22 18-25/30 1.3-2.0 660-1200
