TSW Series Vibrating Feeder

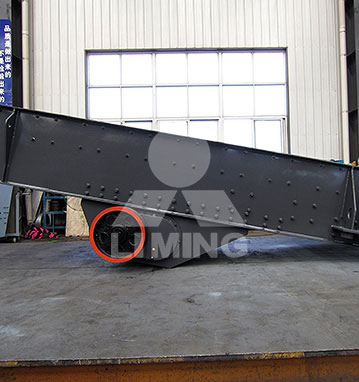

TSW Vibrating Feeder

INPUT SIZE: Up to 850mm       PRODUCTION CAPACITY: 130-650T/h

TSW series vibrating feeder can be widely used in many industrial fields such as metallurgy, cool mining, benefication, construction, chemical industry, grinding, etc, 1.TSW series vibrating feeder adopts Y series motor and variable frequency.TSW vibrating feeder’s dual eccentric shaft exciter generates excitation force. ...

Features
    • 1.TSW series vibrating feeder adopts Y series motor and variable frequency inverter which can control the feeding capacity accurately.

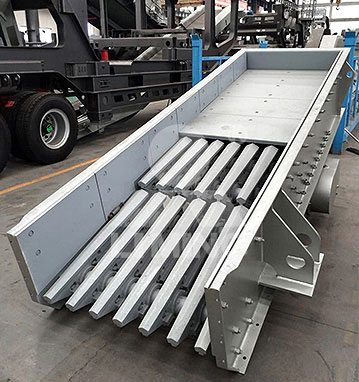

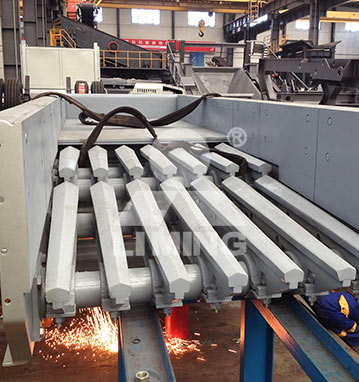

    • 2.Adopt dual ladder and cast steel grid for stronger carrying capacity and long operation life.
    • 3.Install low-angle structural in the bottom which can greatly improve the capacity and performance.
Overview
TSW series vibrating feeder can be widely used in many industrial fields such as metallurgy, cool mining, benefication, construction, chemical industry, grinding, etc, which can feed the crushing equipment evenly and continuously, and pre-screen the raw material at the beginning.
Working Principle

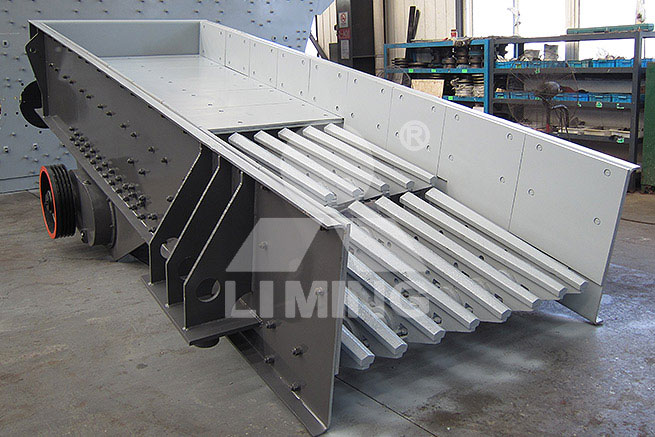

TSW vibrating feeder’s dual eccentric shaft exciter generates excitation force. A gear pair-connects the two eccentric shafts, enables the shafts rotate to opposite direction with same speed. Through motor driving, the excitation force generated constantly, the material slides and bounces ahead to crusher on the feeder groove. When material go through the feeder’s grid bars, the smaller material will fall down through the gap between grid bars and be sent to next crushing process. It enables the feeder to pre-screen material and fully ensures the crushing plant’s high crushing efficiency and capability.

Specifications
Model Maximum feed size (mm) Capacity (t/h) Rotation speed (rpm) Groove size (mm) Weight(t) Dimension(mm)
TSW0936 500 130-280 750-900 960×3600 3.95 3680X2136 X1953
TSW1139 600 150-350 750-900 1100×3900 4.32 3980X2276X1953
TSW1345 700 250-450 750-900 1300×4500 4.97 4580×2570×1980
TSW1548 850 350-650 750-900 1500×4800 6.57 4880X2832X2044

Form 1: TSW series vibrating feeder technical specification

Model V-belt Motor VFD (KW) Feeder driven wheel
diameter (mm)
Motor wheel
diameter (mm)
Model Qty. Model Power (KW)
TSW0936 SPC2800 3 Y2-160L-4 15(20) 15 Φ420 Φ244.6
TSW1139 SPC2800 3 Y2-160L-4 15(20) 15 Φ420 Φ244.6
TSW1345 SPC2800 3 Y2-180L-4 22(30) 22 Φ420 Φ244.6
TSW1548 SPC2800 4 Y2-200L-4 30(40) 30 Φ530 Φ290

Form 2: Accessory parameter
Note: The feeder's capacity may be influenced by many factors: material physical and mechanical properties, material shape, feeding method and etc.The feeder's capability is based on the stone with middle hardness whose bulk density is 1.6t/m³.
